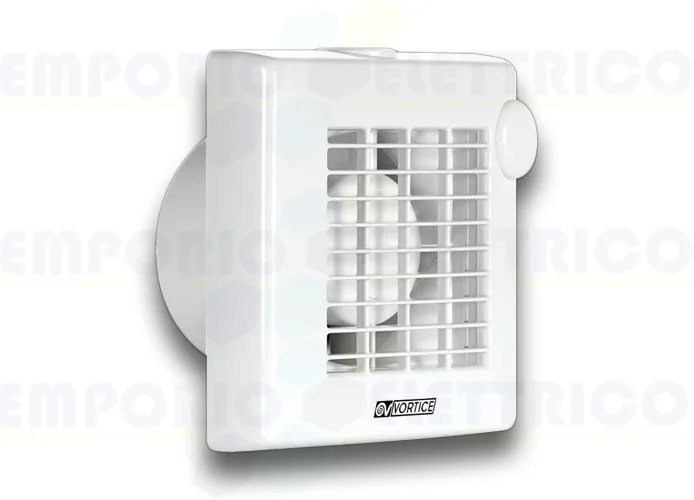

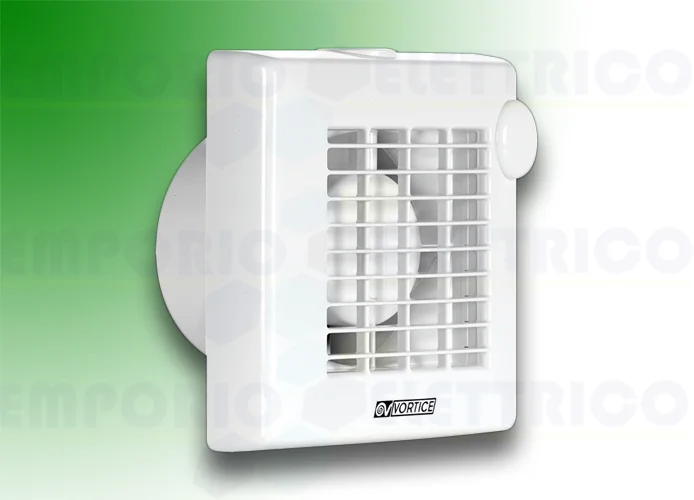

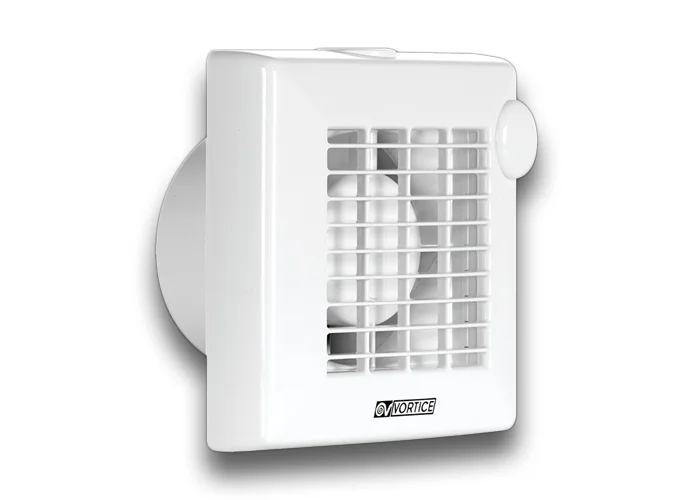

VORTICE - ASPIRADOR HELICOIDAL DE PARED SERIE PUNTO 12V
FUENTE DE ALIMENTACIÓN 22150/22151 NO INCLUIDA
• VERSION POWERED BY SAFE LOW VOLTAGE SUPPLY (SELV - 12V) REQUIRING TRANSFORMER, PURCHASED SEPARATELY
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 90 M3/H.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
serie PUNTO 12V M 100/4" 11203
UTILIZAR CON FUENTE DE ALIMENTACIÓN 22150/22151
ABSORBED CURRENT MAX (A): 0,1
ABSORBED POWER MAX (W): 18
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 99
VOLTAGE (V): 12
WEIGHT (KG): 0,6
DELIVERY MAX (L/S): 25
DELIVERY MAX (M³/H): 90
PRESSURE MAX (MMH2O): 3
PRESSURE MAX (PA): 29
RPM: 2300
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 37,5
SIZE A (MM): 159
SIZE B (MM): 160
SIZE C (MM): 100
SIZE D (MM): 47
SIZE E (MM): Ø 99
