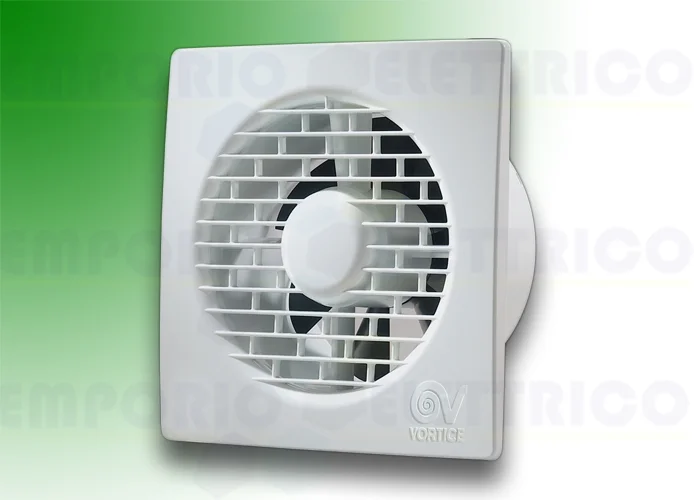

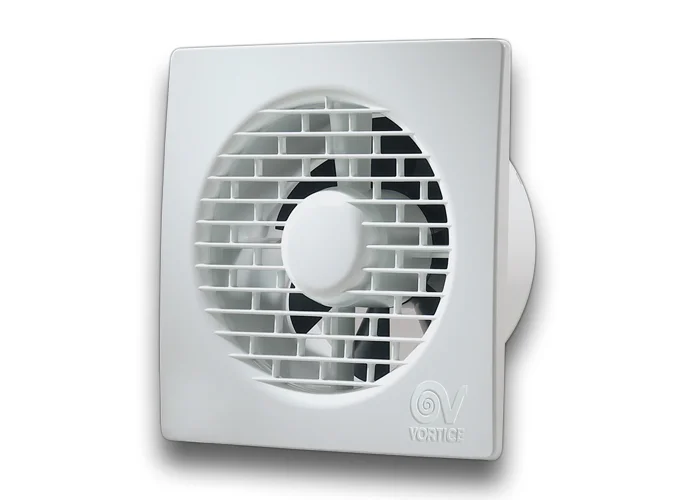

VORTICE - ASPIRADOR HELICOIDAL DE PARED SERIE PUNTO FILOLO
MODELOS PIR ESTÁN EQUIPADOS CON UN CIRCUITO INFRARROJO ELECTRÓNICO CON DETECTOR QUE ACTIVA AUTOMÁTICAMENTE EL ASPIRADOR CUANDO DETECTA LA PRESENCIA DE UNA PERSONA EN SU RADIO DE ACCIÓN
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 85 M3/H.
• INCORPORATES ELECTRONIC PRESENCE DETECTOR WITH INFRARED SENSOR, AND ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’), AFTER THE ROOM HAS BEEN VACATED.
• NON-RETURN DAMPER FITTED TO OUTLET PORT.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
• VORTICE SPEED CONTROLLER.
PUNTO FILO Serie MF 100/4" PIR LL 11185
ABSORBED CURRENT MAX (A): 0,09
ABSORBED POWER MAX (W): 15
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED POWER AT MAX SPEED (W): 15
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 98
VOLTAGE (V): 220-240
WEIGHT (KG): 0,51
DELIVERY MAX (L/S): 24
DELIVERY MAX (M³/H): 85
PRESSURE MAX (MMH2O): 3
PRESSURE MAX (PA): 29
RPM: 2400
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 31
![](http://www.vortice.it/media2/Matele/Italiano/Foto_Pubblicita/01_IT_11123_Foto_Pubblicita_quota_93361.jpg)
SIZE A (MM): 159
SIZE B (MM): 17
SIZE C (MM): 77
SIZE D (MM): 98
