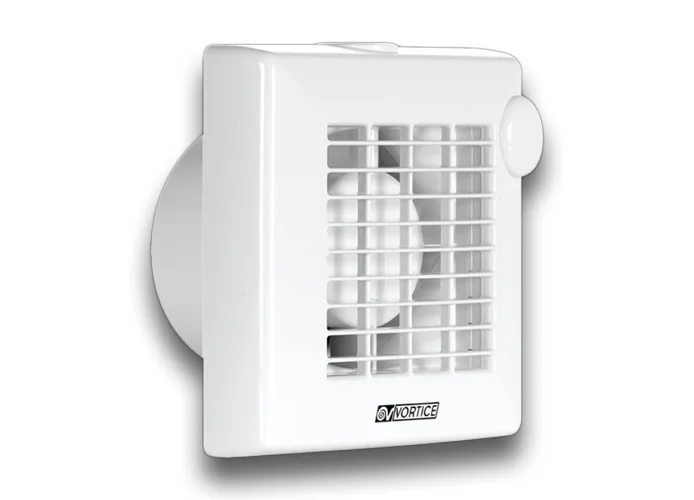

VORTICE - ASPIRADOR HELICOIDAL DE PARED SERIE PUNTO
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 120 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 175 M3/H.
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
PUNTO Serie M 120/5" TIMER 11311
ABSORBED CURRENT MAX (A): 0,12
ABSORBED POWER MAX (W): 20
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 120
Ø DISCHARGE HOLE (MM): 119
VOLTAGE (V): 220-240
WEIGHT (KG): 0,8
DELIVERY MAX (L/S): 48,6
DELIVERY MAX (M³/H): 175
PRESSURE MAX (MMH2O): 4,5
PRESSURE MAX (PA): 44
RPM: 2100
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 39,5
SIZE A (MM): 179
SIZE B (MM): 181
SIZE C (MM): 110
SIZE D (MM): 47
SIZE E (MM): Ø 119
