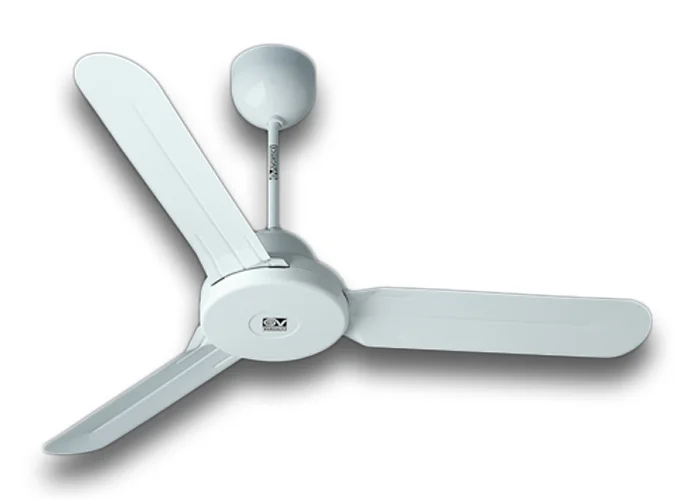

VORTICE - VENTILADOR DE TECHO DE SERIE NORDIK, BLANCO, SIN CONTROL DE LA LUZ Y SIN GRUPO DE CONTROL, DIÁMETRO 90
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT PP, COLOUR WHITE.
• NOMINAL DIAMETER OF BLADES 900 MM.
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS.
• MAXIMUM AIR FLOW: 8,730 M3/H.
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE
• STEEL CEILING ROD WITH POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• SPEED SELECTABLE BY WAY OF CONTROL UNITS OR TELENORDIK 5T REMOTE CONTROL (OPTIONAL)
DESIGN IS 90/36" BLANCO SIN LUZ 61160
ABSORBED CURRENT MAX (A): 0,32
ABSORBED POWER MAX (W): 70
BLADES DIAMETER: 90
FREQUENCY (HZ): 50
INSULATION CLASS: I°
VOLTAGE (V): 220-240
WEIGHT (KG): 5
AIRFLOW SPEED AT MAX SPEED (M/S): 2,65
DELIVERY MAX (M³/H): 8730
DELIVERY MAX (M³/MIN): 145,50
GIRI_MINUTO: 235
RPM: 235
SERVICE VALUE (M³/MIN)/W: 2,079
SOUND POWER LEVEL LW [DB(A)]: 44,9
SIZE A (MM): Ø 914
SIZE B (MM): Ø 230
SIZE C (MM): 495
