VORTICE - VENTILADOR DE TECHO DE SERIE NORDIK DESIGN, BLANCO, CON CONTROL DE LA LUZ Y SIN GRUPO DE CONTROL, DIÁMETRO 140
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT PP, COLOUR WHITE.
• NOMINAL DIAMETER OF BLADES 1400 MM.
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS.
• MAXIMUM AIR FLOW 13,680 M3/H
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE
• STEEL CEILING ROD WITH POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• GLOBE LAMPSHADE OF LAMINATED GLASS, COLOUR OPALINE; E27 SCREW HOLDER FOR LAMP RATED 150W MAX, OR EQUIVALENT ENERGY SAVING LAMP WITH E27 FITTING, MANDATORY IN EU.
• SPEED SELECTABLE BY WAY OF CONTROL UNITS WITH ON/OFF LIGHT SWITCH OR TELENORDIK 5T REMOTE CONTROL (OPTIONAL)

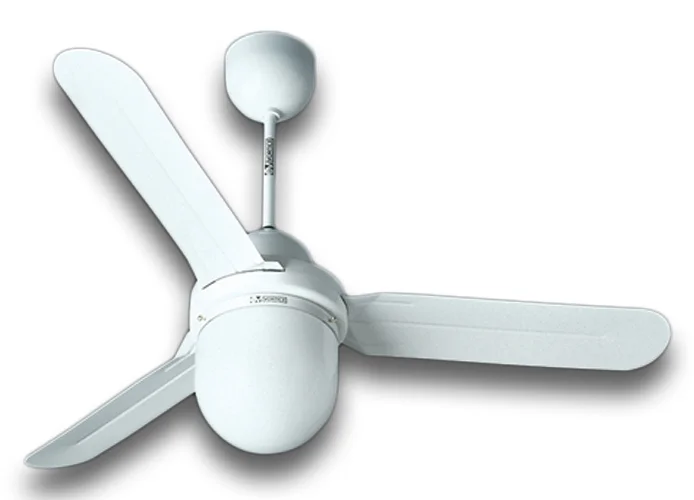

LA IMAGEN ESTÁ RELACIONADA CON EL MODELO DE Ø 90 cm.
DESIGN IS 140/56" BLANCO CON LUZ 61301
ABSORBED CURRENT MAX (A): 0,735
ABSORBED POWER MAX (W): 175
BLADES DIAMETER: 140
FREQUENCY (HZ): 50
INSULATION CLASS: I°
VOLTAGE (V): 220-240
WEIGHT (KG): 6,7
AIRFLOW SPEED AT MAX SPEED (M/S): 1,72
DELIVERY MAX (M³/H): 13680
DELIVERY MAX (M³/MIN): 228,00
GIRI_MINUTO: 215
RPM: 215
SERVICE VALUE (M³/MIN)/W: 1,036
SOUND POWER LEVEL LW [DB(A)]: 52,1
SIZE A (MM): Ø 1422
SIZE B (MM): Ø 230
SIZE C (MM): 495
SIZE D (MM): 190
SIZE E (MM): 685
SIZE F (MM): Ø 208
