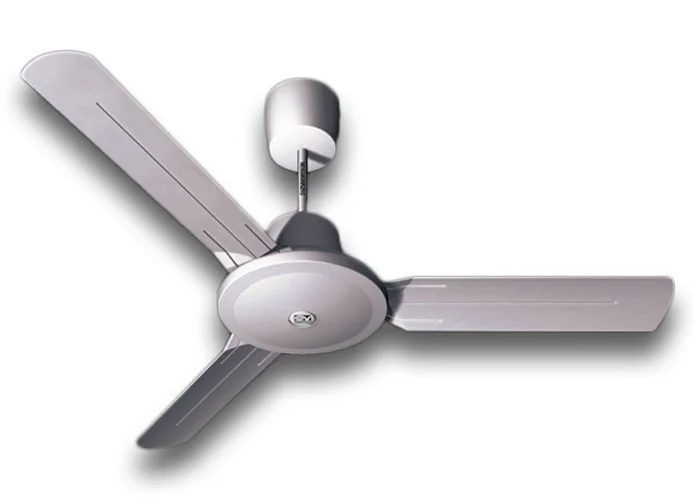

VORTICE - VENTILADOR DE TECHO DE SERIE NORDIK EVOLUTION REVERSIBLE, DIÁMETRO 120/48" PLATA
• NOMINAL DIAMETER OF BLADES 1200 MM
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR SILVER.
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT THERMOPLASTIC RESIN (PP).
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS. DIRECTION OF ROTATION REVERSIBLE.
• MAXIMUM AIR FLOW 13810 M3/H
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR SILVER.
• STEEL CEILING ROD WITH SCRATCH-RESISTANT POLYESTER POWDER COATED FINISH, COLOUR SILVER, LENGTH 375 MM.
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• FACTORY-PREPARED TO ACCEPT 2 SPECIFIC OPTIONAL LIGHT KITS:
- WITH LAMP RATED 105 W MAX, E27 SCREW FITTING
- WITH 2X15 W MAX ENERGY SAVING LAMP, E27 SCREW FITTING (MANDATORY IN EU).
• SPEED SELECTABLE BY WAY OF CONTROL UNITS OR TELENORDIK 5TR REMOTE CONTROL (OPTIONAL)
NORDIK EVOLUTION REVERSIBLE 120/48" PLATA 61754
FREQUENCY (HZ)50
INSULATION CLASSI°
VOLTAGE (V)220-240
AIRFLOW SPEED AT MAX SPEED (M/S)2,36
DELIVERY MAX (M³/H)13810
DELIVERY MAX (M³/MIN)230,17
RPM198
SERVICE VALUE (M³/MIN)/W3,288
SOUND POWER LEVEL LW [DB(A)]49,1
SIZE A (MM)980
SIZE B (MM)298
SIZE C (MM)495
SIZE D (MM)229
SIZE E (MM)724
SIZE F (MM)291
SIZE G (MM)145
SIZE H (MM)640
SIZE L (MM)291
