VORTICE - VENTILADOR DE TECHO INDUSTRIAL NORDIK HEAVY DUTY DIÁMETRO 200, GRIS/NEGRO
• DIE-CASTED EPOXY PAINTED MOTOR COVERS, COLOUR BLACK, SEALED WITH EPDM GASKETS TO PREVENT DUST OR WATER ENTRY.
• CUPS MADE OF ELECTROGALVANIZED STEEL PLATE PROTECTED BY A DOUBLE LAYER OF EPOXY PAINT.
• NOMINAL DIAMETER OF BLADES 2000 MM.
• SINGLE-PHASE EXTERNAL ROTOR MOTOR, SHAFT MOUNTED ON BALL BEARINGS.
• 3 BLADES MADE OF ELECTROGALVANIZED STEEL PLATE PROTECTED BY A DOUBLE LAYER OF EPOXY PAINT.
• 4 HOLE SUPPORT PLATE COMPATIBLE WITH DIFFERENT TYPES OF CEILINGS, EVEN HIGHLY SLANTED.
• LIFELINE TO PREVENT ANY RISK OF FALLING IN CASE OF UNCORRECT INSTALLATION OF THE PRODUCT.
• POSSIBILITY OF AUTOMATIC ADJUSTMENT OF UP TO 16 FANS SIMULTANEOUSLY, IN RELATION TO THE DIFFERENTIAL MEASURED BY TWO TEMPERATURE SENSORS (VORT DELTA T OPTIONAL).
• NUTS AND BOLTS, CEILING HOOK AND RUBBER MADE DAMPER SUPPLIED WITH THE PRODUCT.
• ADJUSTABLE SPEED CONTROL THROUGH AUTO-TRANSFORMER OR MULTIPLE ELECTRONIC DEVICES ALLOWED (OPTIONALS)

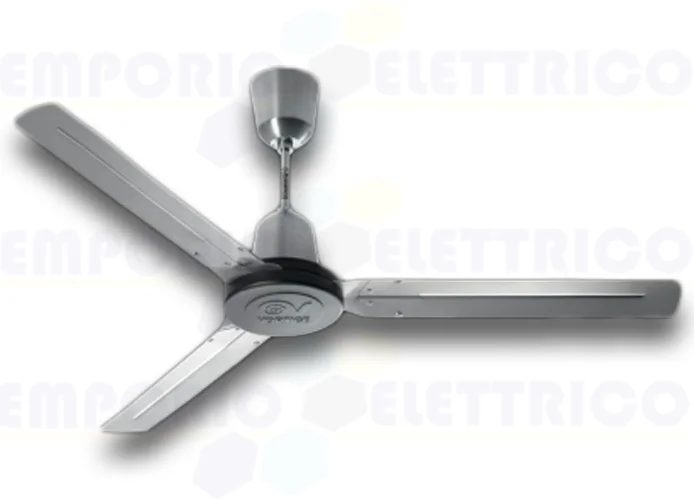

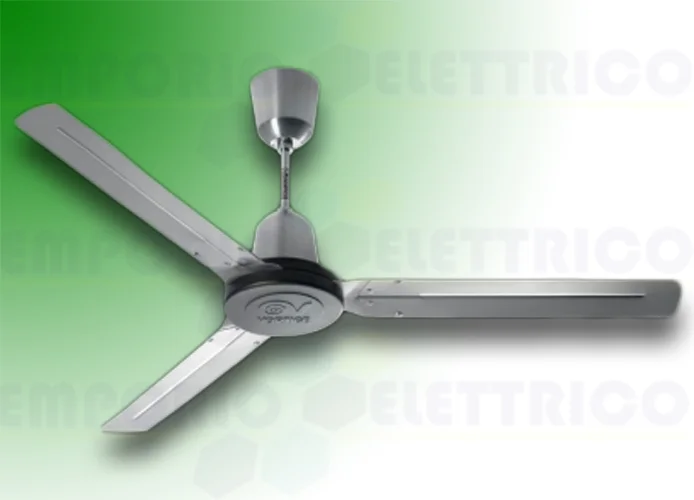

(EL IMAGEN SE REFIERE AL MODELO CON DIÁMETRO 120)
NORDIK HEAVY DUTY 200 GRIGIO/NERO 61023
ABSORBED CURRENT MAX (A): 0,38
ABSORBED POWER MAX (W): 85
BLADES DIAMETER: 2000
FREQUENCY (HZ): 50
INSULATION CLASS: I°
IP: 55
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MOTOR POWER (W): 85
VOLTAGE (V): 230
WEIGHT (KG): 9,5
AIRFLOW SPEED AT MAX SPEED (M/S): 1,35
DELIVERY MAX (M³/H): 22050
DELIVERY MAX (M³/MIN): 367,5
RPM: 186
SERVICE VALUE (M³/MIN)/W: 4,32
SOUND POWER LEVEL LW [DB(A)]: 56,4
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 38,85
SIZE A (MM): Ø 2000
SIZE B (MM): Ø 230
SIZE C (MM): 495
